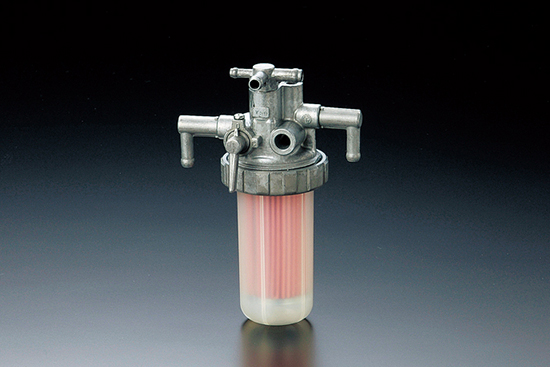

REMOVABLE TYPEZINC-DIECASTING BASE
リムーバブルタイプ（亜鉛ダイカスト）Every parts we make,
we make sure that everything is as safe and secure as possible.
SPECIFICATION仕様
＜YD-171-100A＞
FLOW RATE - PRESSURE LOSS［流量-圧力損失］
2L/min-8kPa MAX 以下
AIR TIGHTNESS［気密性］
100kPa MIN 以上
MATERIAL OF FILTER［フィルタ材質］
PAPER
FILTERED PARTICLE SIZE［ろ過粒径］
MIN.15μ
FILTRATION AREA［ろ過面積］
432cm2
OPERATING PERFORMANCE［操作性］
40.7N･m MAX 以下(2～3回作動後)
APPLICATION［使用］
LIGHT OIL［軽油］
-

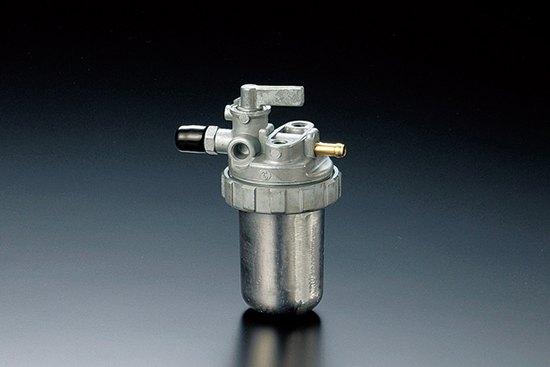

YD-171-100A
-

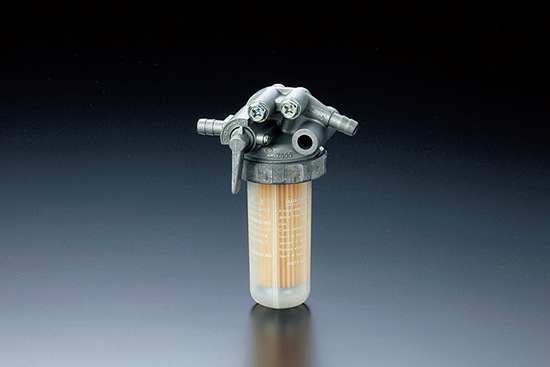

TJ-2-100A
-

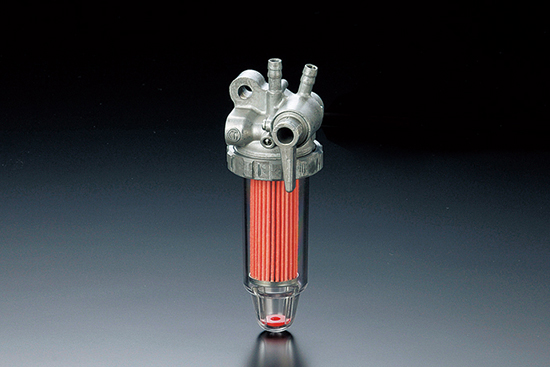

YD-218-100C
-

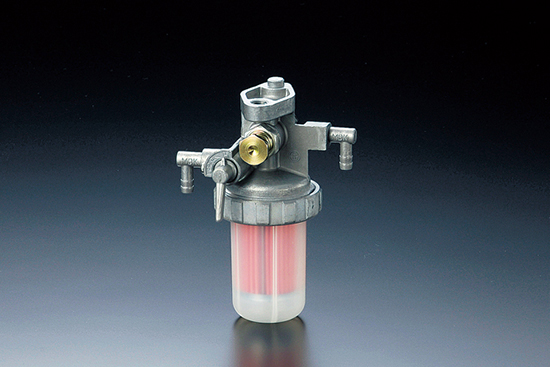

DK-23-100D
-

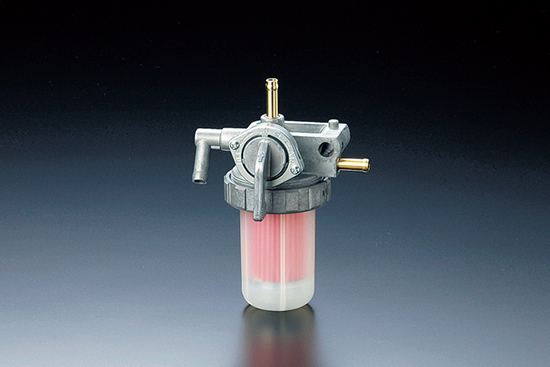

YD-100-100B
-

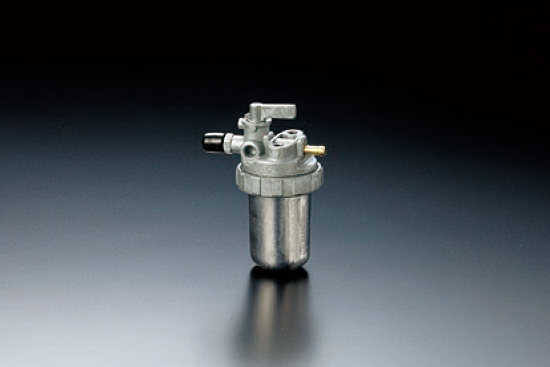

JB-21-100A
-

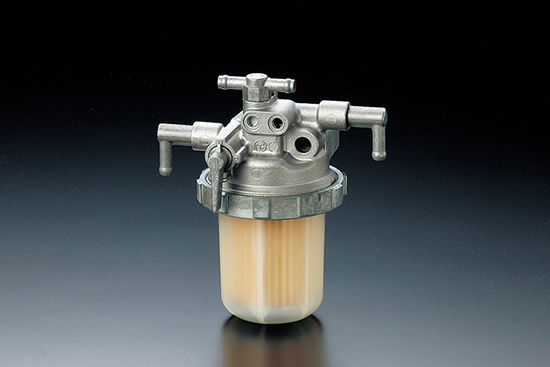

MK-92-100A
-

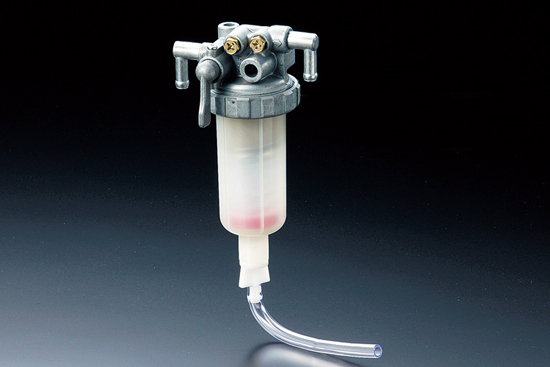

MK-2-100FA
-
MK-43-100B
